Our Aerial Platform Trucks are state-of-the-art equipment engineered to meet the most demanding elevation work requirements. Built with a rugged, heavy-duty chassis crafted from high-strength steel, these trucks offer remarkable stability on various terrains, from bustling urban streets to uneven construction sites.
The aerial platform itself is a standout feature, designed to provide workers with a safe and spacious work area. It's made of durable, non-slip materials and equipped with sturdy guardrails, ensuring operator safety at heights. With its adjustable height and reach capabilities, courtesy of a reliable hydraulic system, it enables precise positioning for tasks like building maintenance, electrical repairs, and signage installation.
| The specification of Dongfeng 12Meters Aerial Platform Truck | ||
| Product | Dongfeng 12 meters aerial platform truck | |
| Cab | Single sleeper row, Left/right hand drive with A/C | |
| Chassis | Brand | Dongfeng |
| Chassis model | EQ1042 | |
| Drive type | 4x2 | |
| Tire Spec. | 7.00-16 | |
| Tire Numbers | 6 | |
| Braking System | Air braking | |
| Clutch | Unaware, dry clutch, hydraulic remote control | |
| Transmission | Manual | |
| Engine | Model | CY4102-C3F |
| Horse Power(hp) | 95 | |
| Displacement(cc)/ Power(kw) | 3856/70 | |
| Emission | Euro III | |
| Main Parameters | Overall dimension (L*W*H/mm) | 7615X1990X2995 |
| Wheelbase(mm) | 3300 | |
| Axles No. | 2 | |
| GVW(kg) | 4325 | |
| Curb Weight(kg) | 4000 | |
| Leaf spring No. | 8/9+5 | |
| Approaching/Departure Angle(°) | 19/13 | |
| Front/Rear track(mm) | 1506/1466 | |
| Front/Rear suspension(mm) | 1032/1983 | |
| Max speed(km/h) | 95 | |
| Front/Rear Axle Load(kg) | 1730/2595 | |
| Modified Description | 1.Equipment: Max operation height 12-18m, with tubular shape platform(rated load 200kg), 3 section folding arms, hydraulic 360°continuous rotation, 1 ton stretch hook, 4 H-shape hydraulic legs, bilateral pilot-controlled valve is adjustable(the control of the legs can be manual or individual); | |
| 2. Operating system: the lifting, rotating, landing and hook of the arm adopt with magnetic exchange valve system, electrical control operation (1set platform pilot switch and 1 set pilot switch in the cabin); | ||
| 3. Control system: equipped with emergency flameout device. | ||

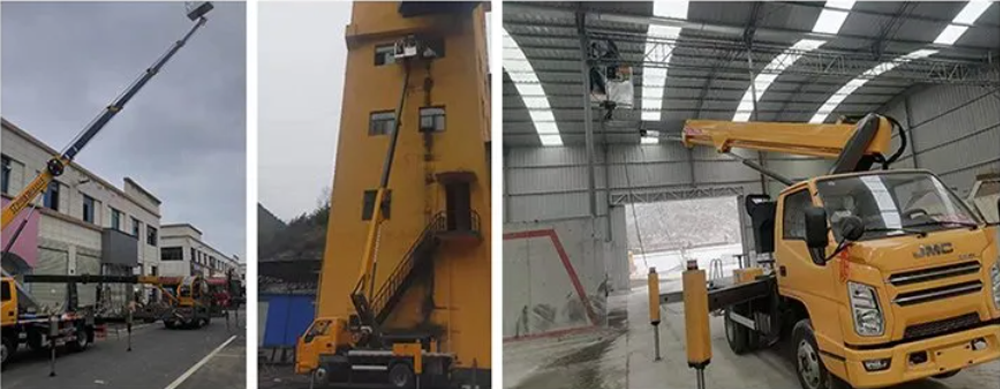

| Application | This truck can safely and effectively to send staff to 18-22 meters high altitude operation or maintenance, installation, cleaning, photography, shipbuilding, chemical industry, electric power, pruning, replacement lamps and other engineering repair operations. | |

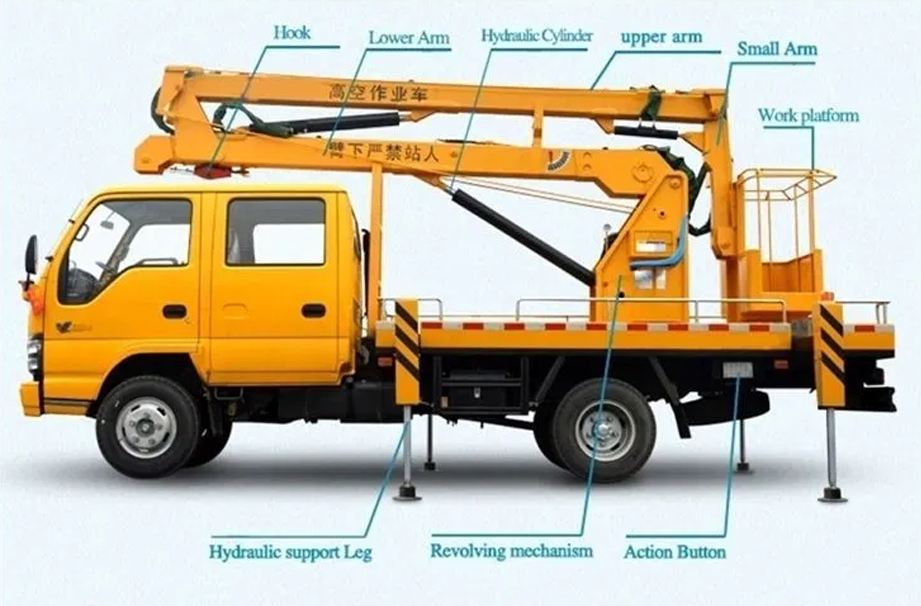

1. The chassis is the fundamental structure of the aerial platform truck. It's typically fabricated from heavy-duty steel to bear the entire weight of the vehicle, including the aerial platform, hydraulic system, and any payload.
2. The aerial platform is the work area at the end of the lifting mechanism. It's usually constructed from strong, non-slip materials such as steel grating or composite panels to prevent slips and falls.
3. The lifting mechanism is a crucial component that enables the aerial platform to ascend and descend. It's often a hydraulic system composed of hydraulic cylinders, pumps, and valves.
4. The control system allows the operator to manipulate the aerial platform truck. It can be a simple set of joysticks or a more complex electronic control panel.
5. Many aerial platform trucks are equipped with outriggers. These are extendable legs that can be deployed to increase the vehicle's stability, especially when the aerial platform is at a significant height or when the truck is operating on uneven ground.
1. Determine the maximum height and reach you need to access your work areas. Measure the vertical distance from the ground to the highest point you'll be working on and the horizontal distance from the base of the truck to the furthest area.
2. Consider the weight of the workers, tools, and materials that will be on the platform simultaneously. The platform capacity varies among different models.
3. Think about the type of terrain where the truck will be used. If it's a construction site with rough and uneven ground, a truck with large, all-terrain wheels or tracks may be more suitable.
4. Aerial platform trucks can be powered by different means. Diesel-powered trucks are suitable for outdoor and heavy-duty applications, providing high power and long-running times.
5. Look for essential safety features such as non-slip platforms, guardrails, and safety harness attachment points. The truck should have an emergency stop button and a reliable braking system.
6. Compare the initial cost of different aerial platform trucks. However, also consider the long-term maintenance costs. Check the availability of spare parts and the ease of servicing.
Aerial platform trucks are equipped with advanced lifting mechanisms that provide a wide range of working heights and reaches.
The aerial platform is a key feature designed with the safety and comfort of workers in mind. These platforms are usually made of durable, non-slip materials like steel grating or composite panels to prevent accidents caused by slips and falls.
A strong chassis is the foundation of an aerial platform truck. Built from high-strength steel, it provides stability and support for the entire vehicle and the elevated platform.
The hydraulic systems used in aerial platform trucks enable precise and smooth movement of the platform.
These trucks come with different power options to suit various working environments. Diesel-powered models are known for their high power output and are suitable for outdoor and heavy-duty applications where long-running times are required.
Aerial platform trucks incorporate a range of safety systems. In addition to the safety features of the platform itself, they often have emergency stop buttons located on both the platform and the control panel.
