A fecal suction truck is a specialized vehicle essential for maintaining hygienic conditions in various settings. It is built with a durable chassis, usually made of heavy-duty steel, which provides a stable base for the entire structure.
The truck features a tank specifically designed to store fecal matter and other liquid waste. The tank is constructed from corrosion-resistant materials to withstand the harsh nature of the contents. A powerful suction pump is installed, capable of generating strong negative pressure to draw feces from septic tanks, cesspools, or other collection points.
The cab is designed for the comfort of the operator, with ergonomic seats and easy-to-read instrumentation. Safety features like bright lights and reflective markings are also incorporated. This truck plays a crucial role in waste management, ensuring the proper and efficient removal of fecal waste from residential, commercial, and industrial areas, thereby contributing to public health and environmental protection.

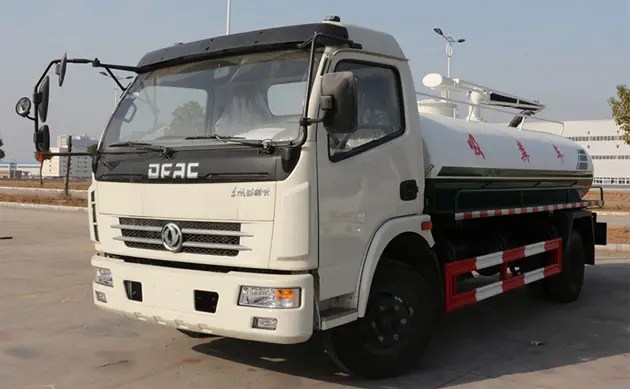

| The specification of 4X2 DongFeng 5CBM Fecal Suction Truck | ||
| CHASSIS | ||
| Cabin | 3 passengers | |
| Overall Dimension | 7210x2240x2600mm | |
| Gross Vehicle Weight | 8275kg | |
| Curb Weight | 5200kg | |
| Loading Weight | 2880Kg | |
| Wheel Base | 3800mm | |
| Approach/Departure Angle | 24/10 degree | |
| Engine | CY4102;four stroke, 4 cylinder in line; Euro III | |
| Engine horsepower | 124HP | |
| Displacement | 3,856 L(Diesel) | |
| Max Driving Speed | 99km/h | |
| Fuel Tank | 120L | |
| Tire | 7.50-16 (6 pieces + 1 spare) | |
| TANK BODY | ||
| Tank | Capacity | 5CBM |
| Dimension | 2100*1400mm(Length*Diameter) | |
| Material | Q235 high tension steel | |
| Thickness | 4mm | |
| PUMP | ||
| Vacuum Suction Pump | Model | SK-6 |
| Vertical Suction Range | 9~10M | |
| Flow Rate | 1.5m³/min | |
| Rubber tube | 7M | |
| Adequate Vacuum, Strong suction, Stable Working, Easy Operation and Maintenance | ||

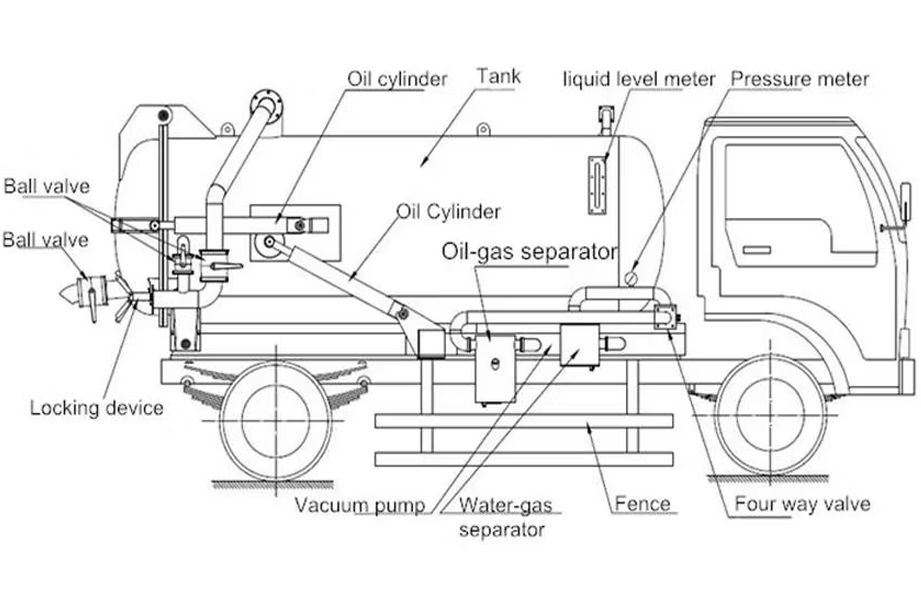

1. The chassis of a fecal suction truck is a heavy-duty, robust structure. Constructed from thick, high-strength steel plates, it serves as the fundamental framework that supports the entire vehicle.
2. The fecal waste tank is the central component. It is typically made of corrosion-resistant materials such as stainless steel or high-density polyethylene.
3. A powerful suction pump is a key feature. It can generate a significant suction force, enabling the truck to draw in fecal matter from different sources like septic tanks, cesspools, or sewer inlets. The pump is often driven by the truck's engine through a power take-off (PTO) system.
4. The truck is equipped with a flexible suction hose. This hose is made of durable materials that can withstand the corrosive and abrasive nature of fecal waste and the pressure changes during suction.
5. The cab is designed with the operator's comfort and functionality in mind. It features an ergonomic seat to reduce fatigue during long working hours. The controls for driving the truck and operating the suction pump system are laid out in an intuitive manner.
6. Fecal suction trucks are outfitted with a range of lights and safety equipment. Bright headlights and taillights ensure visibility during nighttime driving and transportation.
1. Type of Waste: Determine the main type of waste to be handled. If it is mainly fecal matter with some small solid debris, a standard fecal suction truck would be suitable.
2. Volume of Waste: Estimate the amount of waste you need to handle regularly. This will help you select an appropriate tank capacity.
3. Tank Capacity: As mentioned above, choose a tank capacity that can meet your daily or weekly waste collection needs without being overly large or small for your operations.
4. Suction Power: A powerful suction pump is essential for efficient waste collection. Look for a truck with a vacuum system that can generate sufficient negative pressure to quickly and effectively suck up the fecal waste, even when it is thick or contains some solid particles.
5. Maneuverability: Consider the areas where the truck will be operating. If it's mainly in urban areas with narrow streets and tight corners, a smaller and more maneuverable truck would be preferable.
6. Chassis and Durability: The chassis should be strong and durable enough to support the weight of the fully loaded waste tank and withstand the rigors of daily use.
7. Suction Hose and Fittings: The suction hose should be long enough to reach the waste source easily and made of durable, flexible material that can resist wear and tear.
8. Control Systems: The controls for operating the suction pump, valves, and other functions should be easy to access and operate.
9. Safety and Warning Devices: Ensure the truck is equipped with proper safety features such as lights, reflectors, and warning signs to make it visible during operation, especially in low-light or hazardous conditions.
10. Reliable Brands: Research and choose well-known and reputable brands that have a history of producing high-quality fecal suction trucks.

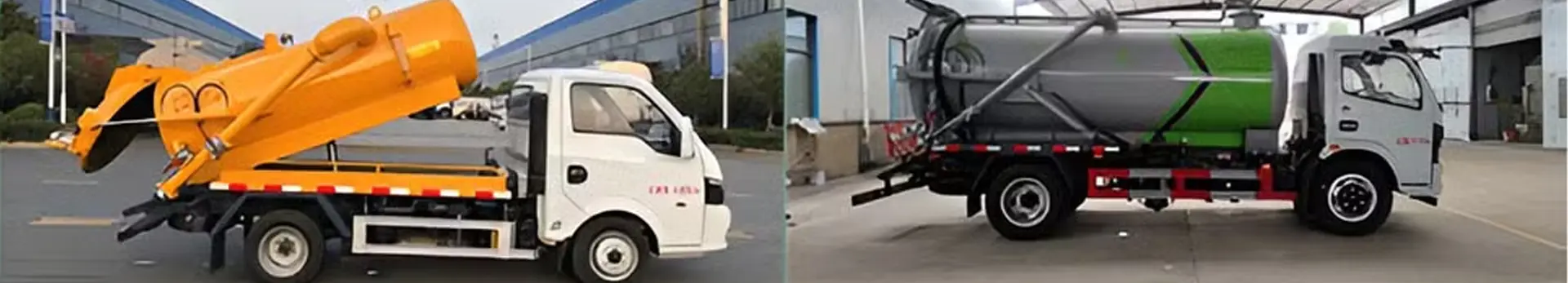

Fecal suction trucks are equipped with a tank specifically designed to hold fecal matter and associated liquid waste. The tank is constructed from durable and corrosion-resistant materials such as stainless steel or high-density polyethylene.
A key feature is the powerful suction pump. It can generate a significant negative pressure, allowing the truck to draw fecal waste from various sources like septic tanks, cesspools, and sewer inlets.
The truck is fitted with a flexible suction hose made of tough materials. This hose can endure the corrosive and abrasive nature of fecal waste and the pressure changes during suction.
The chassis of a fecal suction truck is heavy-duty and made of high-strength steel. It is built to support the weight of the waste tank when full and other components of the truck.
The cab is designed with the operator's comfort and ease of operation in mind. It features an ergonomic seat to reduce fatigue during long working hours. The controls for driving the truck and operating the suction pump system are laid out in an intuitive manner.
Fecal suction trucks are equipped with safety and visibility features. Bright headlights and taillights ensure visibility during nighttime driving and transportation. Reflective markings on the sides and rear of the truck enhance its visibility in low-light conditions or when other vehicles' headlights shine on it.
