A garbage truck is a crucial vehicle in waste management. It is typically built on a sturdy chassis, often made of heavy-duty steel, which provides the necessary strength and stability to carry heavy loads of waste. The truck is equipped with a large-capacity cargo compartment, usually made of corrosion-resistant materials.
It has a specialized loading mechanism. For example, some use a hydraulic lift system to hoist dumpsters or bins and empty their contents into the cargo area. Others may have a side-loading or rear-loading system with automated arms for efficient waste collection.
The cab is designed for driver comfort, featuring ergonomic seats and clear instrument panels. Safety features like bright lights and warning signals are also incorporated. Garbage trucks play a vital role in maintaining cleanliness in urban and rural areas by transporting collected waste to disposal sites in a timely and efficient manner.

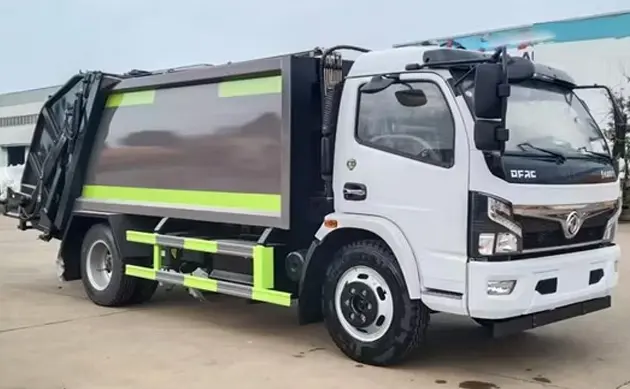

| 4X2 Dongfeng 5CBM Garbage Compactor Truck Specification | ||
| Overall Dimension | 5895 x2045x2210mm | |
| Curb Weight | 3550kg | |
| Wheel Base | 3300 mm | |
| Cabin | 3 Passengers Allowed, with AirConditioner, Radio | |
| Engine | Yuchai EngineYC4F115-30 | |
| Engine horsepower | 115HP, EUROIII | |
| Displacement | 2.659L | |
| Max Driving Speed | 90 km/h | |
| Gear Box | 6 Forward Gear, 1 Reverse Gear | |
| Tire | 7.00R16(6 pieces with one spare) | |
| Garbage Bin | Capacity | 5 CBM |
| Material | 4mm Carbon Steel for Garbage Bin Body | |
| Design | Whole unit with Leakage Proof Design | |
| Ways of Loading | Rear Loading with optional Bucket Lifting System | |
| Plat Form | 2 side for 2 worker for foot transport | |
| Garbage Compact Ratio | 1/3 - 1/4 | |
| Control System | One control Panel on the back, One Control system in back of Cabin | |
| Main structure | 1. Equipped with air-tight dustbin, hydraulic system and operating system. 2. Automatic loading, compressing and discharging, all handled by 1 person 3. Sewage water collection tank to avoid any pollution during handling. 4. LargePressure, Good Leakage Proof, Convenient Operation Dependable Security 5. Electrical Control Panel for compacting system. 6. Cycling time＜15s | |
1. The chassis of a garbage truck is a heavy-duty structure, usually made of thick, high-strength steel plates. It serves as the base to support the entire vehicle's weight, including the garbage container and the waste it holds.
2. The garbage container is the heart of the garbage truck. It comes in different shapes and sizes, depending on the truck's design and intended use. Containers can be rear-loading, side-loading, or front-loading.
3. Different types of loading mechanisms are used in garbage trucks. Rear-loading trucks usually have a hydraulic lift system that allows the operator to lift and tip garbage bins or dumpsters to empty their contents into the container.
4. Many garbage trucks have a packer system to compress the waste. This system consists of a hydraulic ram that moves back and forth inside the container, pushing the garbage to the rear and compacting it.
5. The cab is designed with the driver's comfort and functionality in mind. It has ergonomic seats to reduce fatigue during long-haul waste collection routes.
6. Garbage trucks are outfitted with a range of lights and safety equipment. Bright headlights and taillights ensure visibility during nighttime driving and transportation.
1. Residential vs. Commercial: For residential areas, a side-loading or rear-loading garbage truck might be more suitable as they can easily access curbside bins.
2. Route Conditions: If the collection route includes narrow streets or areas with limited access, a more maneuverable truck with a smaller turning radius is preferable.
3. Waste Volume: Estimate the amount of waste you need to collect. Consider the number of households or businesses on the route and the frequency of collection.
4. Compaction: A good compaction ratio is essential to maximize the amount of waste the truck can carry.
5. Ease of Use: The loading mechanism should be easy for the operator to use. Automated loading arms on side-loading or front-loading trucks can increase collection efficiency but may require more maintenance.
6. Compatibility: Ensure the loading mechanism is compatible with the types of waste containers used in your area.
7. Chassis Strength: The chassis should be strong enough to support the weight of the fully loaded garbage container and withstand the rigors of daily use.
8. Body Durability: The garbage container and other truck components should be made of durable materials. Stainless-steel bodies are corrosion-resistant and can handle a wide range of waste types.
9. Driver's Comfort: The cab should have an ergonomic seat to reduce driver fatigue during long workdays.
10. Visibility: Good visibility from the cab is crucial. The truck should have large windows and well-placed mirrors to provide a clear view of the rear and sides of the truck.
Garbage trucks are built on a heavy-duty chassis, typically made of high-strength steel. The chassis is designed to bear the significant weight of the garbage container and the waste it holds.
The garbage container is a central feature. It comes in different configurations such as rear-loading, side-loading, or front-loading. The container is usually made of corrosion-resistant materials like stainless steel or high-density polyethylene.
Different types of loading mechanisms are employed. Rear-loading trucks have a hydraulic lift that can hoist dumpsters or bins and empty their contents into the container. Side-loading trucks feature automated arms that can grab and lift waste containers from the side of the street.
The cab is crafted with the driver's comfort and ease of operation in mind. It has ergonomic seats to minimize fatigue during long work shifts. The controls for driving the truck, like the steering wheel, accelerator, brakes, and transmission, are arranged in an intuitive layout.

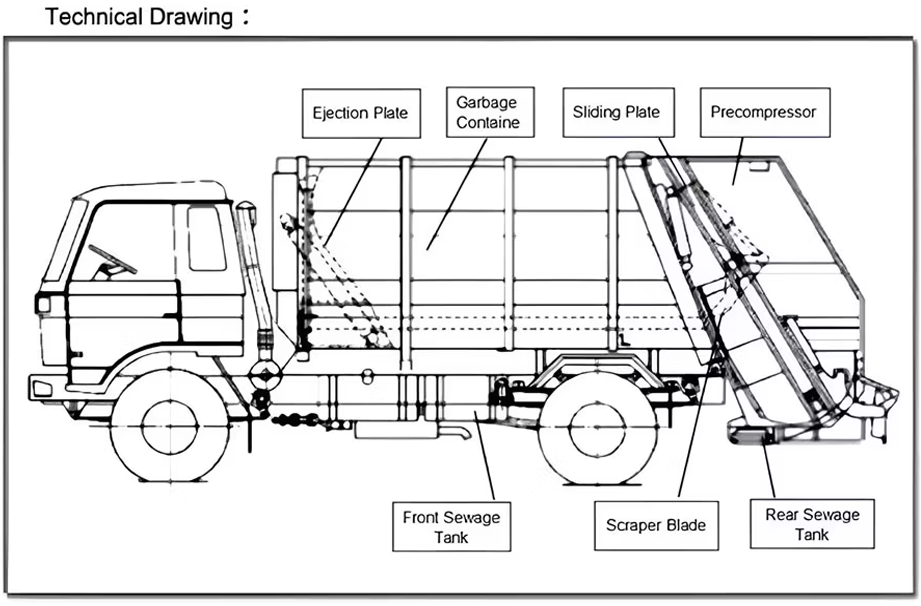

The packer system in many garbage trucks is crucial. It uses a hydraulic ram that moves back and forth within the garbage container. This ram pushes the waste towards the back and compresses it, increasing the density of the waste.
