Integrated Tow Trucks are the pinnacle of vehicle recovery solutions, expertly engineered to meet the diverse and demanding needs of the towing industry. These trucks are a harmonious blend of power, functionality, and innovation.
Boasting a rugged, heavy-duty chassis constructed from high-strength steel, they can effortlessly bear the weight of large, disabled vehicles. The integrated winch system, often hydraulic-powered, unleashes remarkable pulling force, smoothly retrieving stranded trucks, buses, or machinery from tricky situations.
What sets them apart is their seamless integration of components. The towing boom, with its adjustable length and flexible articulation, precisely positions to connect with the towed vehicle. The operator's cabin is a haven of comfort, furnished with ergonomic seats and intuitive controls.

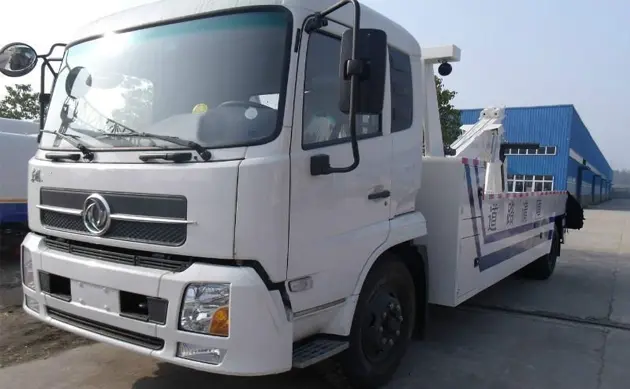

| Specification of Dongfeng 5 Tons Integrated Tow Truck | |||
| Item | Unit | Parameter | |
| Model | 5080TQZP Crane Wrecker | ||
| Chassis | EQ1061TJ3 | ||
| Overall dimension | mm | 6515×2150×2370 | |
| Fact lift weight | kg | 3000-5000 | |
| Mass in working order | Appro×6495 | ||
| Arm extension stroke of lift | mm | Approx1500 | |
| Max loading weight | kg | Approx 5000 | |
| Wheel base | 3800 mm | Engine type | CY4102BZLQ |
| F/R track base | 1750/1586mm | Horsepower | 120 HP |
| F/R over hang | 1110/1260mm | fuel consumption / 100 km | 13L |
| Approach/Departure angle | 18/14 ° | Min turning radius | 12 m |
| Max speed | 90 km/h | Max grade ability | 25° |
| Tire | 7.50-16 | Min ground clearance | 176 mm |
| Armor plate spring quantity | 7/8+5 | Gearbox | 5 speeds |
| Brake System | Exhaust brake | Clutch | ¢242 mm |
| Brake space | 8 m | Air condition | optional |
| Front/Rear axles | 1.5/3.5 T | Frame | 188 mm |
| Traction system | 4×2 | Electric system | 12 v |
| Number of axles | 2 | Allowable passengers | 2 |
| Specialized Device | Lifting Organ | Max lifting capacity(kg) | 1500 |
| Max lifting height(mm) | 3630 | ||
| Lift-hoist telescope length(mm) | 1600 | ||
| Winch rating pulling capacity(kg) | 4000 | ||
| Length of steel(m) | 21 | ||
| Hoisting Organ | Max under-hoisting useful length(mm) | 1750 | |
| Rating under-hoisting capacity(kg) | 1540 | ||
| Fully extended max under-hoisting capacity(kg) | 1200 | ||
| Rating under-pulling capacity(kg) | 4400 | ||

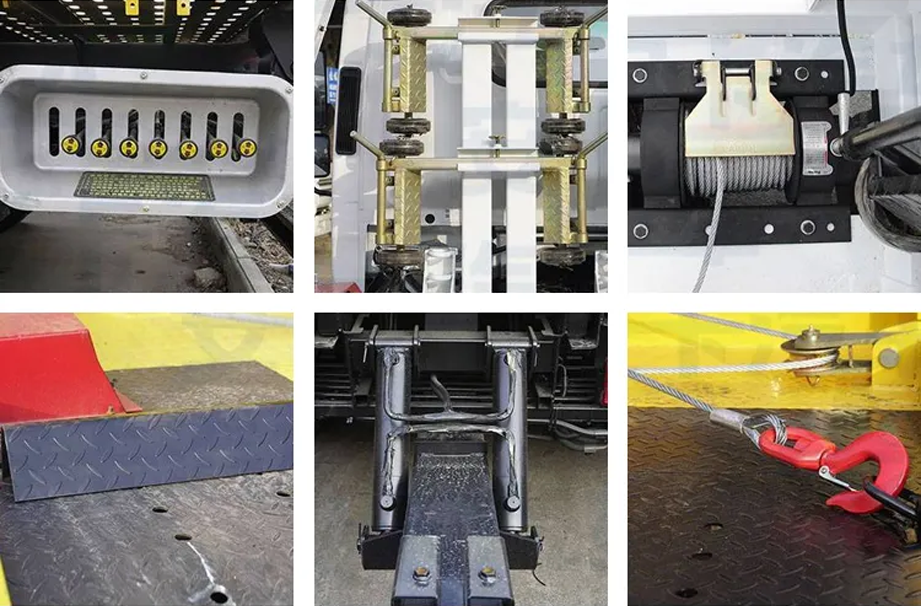

1. The chassis of an integrated tow truck is a robust and heavy-duty structure, typically made of high-strength steel. It serves as the backbone of the vehicle, designed to support the substantial weight of the towed vehicle, as well as the truck's own components.
2. The integrated winch system is a key component that sets these trucks apart. Usually hydraulic-powered, it is capable of generating a significant amount of force.
3. The towing boom is a vital part of the integrated tow truck. It is typically made of durable materials such as hardened steel or high-strength alloys. The boom's length is often adjustable, allowing it to reach different distances to connect with the towed vehicle.
4. Integrated tow trucks come equipped with a variety of towing attachments. Heavy-duty tow hooks are designed to securely latch onto the frame or other suitable points of the towed vehicle.
5. The operator's cab is designed with both comfort and functionality in mind. It features an ergonomic seat to reduce operator fatigue during long towing operations.
6. These trucks are equipped with a range of lights and safety equipment. Flashing warning lights, usually in bright colors such as amber or red, are mounted on the roof and sides of the truck to alert other road users during towing operations.
1. Towing Capacity: Determine the maximum weight your tow truck needs to handle. Integrated tow trucks have a wide range of towing capacities.
2. Vehicle Compatibility: Some tow trucks are better suited for towing low-slung sports cars, while others can handle tall and wide vehicles like RVs or large commercial trucks more effectively.
3. Winch Power: The winch is a crucial part of the integrated tow truck. Look for a powerful hydraulic-powered winch. The winch's pulling force, measured in pounds-force (lbf), should be strong enough to pull the heaviest vehicles you expect to tow.
4. Recovery Attachments: Examine the types and quality of the towing and recovery attachments. This includes heavy-duty hooks, chains, straps, and any specialized equipment like wheel-lift attachments or under-reach systems.
5. Boom Strength and Flexibility: The towing boom should be strong and durable. It's usually made of high-strength steel or alloy. The boom's strength is vital to support the weight of the towed vehicle without bending or deforming.
6. Boom Reach and Adjustment: Consider the maximum reach of the boom and its ability to adjust in height and angle. This is important when dealing with vehicles of different sizes and shapes.
7. Chassis Strength: The chassis must be heavy-duty and capable of withstanding the heavy loads. A chassis made of thick, high-strength steel plates is ideal.
Integrated tow trucks are designed to handle a wide range of towing requirements. They have the strength and capacity to tow various vehicles, from small passenger cars to large commercial trucks and heavy construction equipment.
A standout feature is the integrated winch system, usually hydraulic-powered. This system provides a significant amount of pulling force to retrieve vehicles that are stuck or disabled.
The towing boom is a crucial component that offers both strength and flexibility. Made from durable materials such as high-strength steel or alloy, it can support the weight of heavy vehicles without buckling.
These trucks come equipped with a wide variety of towing attachments. This includes heavy-duty tow hooks that can latch onto the frame or other suitable points of the vehicle being towed.
The chassis of an integrated tow truck is heavy-duty and constructed from thick, high-strength steel plates. It serves as the foundation for supporting the weight of the truck and the towed vehicle.
The operator's cab is designed with the operator's comfort and ease of use as top priorities. It features an ergonomic seat to reduce fatigue during long towing operations.
Integrated tow trucks are equipped with a range of safety features. Flashing warning lights, typically in bright colors such as amber or red, are mounted on the roof and sides of the truck to alert other road users during towing operations.
