A Road Cleaning Truck is a vital vehicle for maintaining clean and tidy road surfaces. It is built on a strong chassis, typically made of heavy-duty steel, ensuring durability and stability. The truck is equipped with a variety of cleaning mechanisms. For example, it may have rotating brushes that can sweep up debris, dirt, and leaves from the road.
Some models also feature a high-pressure water spraying system to wash away stubborn stains and grime. There is usually a large-capacity storage tank for water or collected waste. The cab is designed for driver comfort, with ergonomic seats and a clear instrument panel. It also has safety features like bright lights and warning signals.
| The specification of 4X2 Dongfeng 5m3 Road Cleaning Truck | |
| Item | Parameter |
| Production name | Dongfeng 4x2road cleaning truck |
| vehicle model | CLW5071TSL4 |
| Engine | Engine model: CY4102-CE4F |
| Chaoyang Diesel | |
| Exhaust: 3856 ml | |
| Power: 73 kw | |
| Chassis model | DFA1070SJ35D6 |
| Tire | Tire specification: 7.00-16 |
| Number of tire: 6 | |
| Axle | Number of axles: 2 |
| Axle-load: 2920/4380 | |
| Wheel base(mm):3300 | |
| Traction system | 4*2 |
| TankVolume(cbm) | 4m3 dustbin,1.0m3 clean water tank |
| GVW(kg) | 7300 |
| Curb weight(kg) | 4800 |
| Overall dimensions(mm) | 5950脳1995脳2380 |
| F / R track base(mm) | 1506/1466 |
| F/R overhang(mm) | 1032/1618 |
| Approach/departure angle(掳) | 19/12 |
| Max speed(Km/h) | 95 |
| Equipments | 1> Equipped with 4 sweeping brush, JMC 88 hp deputy engine; Italian motor; French control switch; Joint venture solenoid valve group; Maintenance-free self-separate clutch; Maintenance-free fan; Stainless steel water tank and dustbin; Rear LED arrow lights, manual pump for emergency system. |
| 2> Maximum sweeping width 3.2 m, inhaled size蠁120 mm | |
| 3> Optional: monitoring, sprinkler function, self-cleaning function for dustbin. | |
1. The chassis of a road-cleaning truck is a heavy-duty structure, usually constructed from high-strength steel plates. It provides a stable base for the entire vehicle.

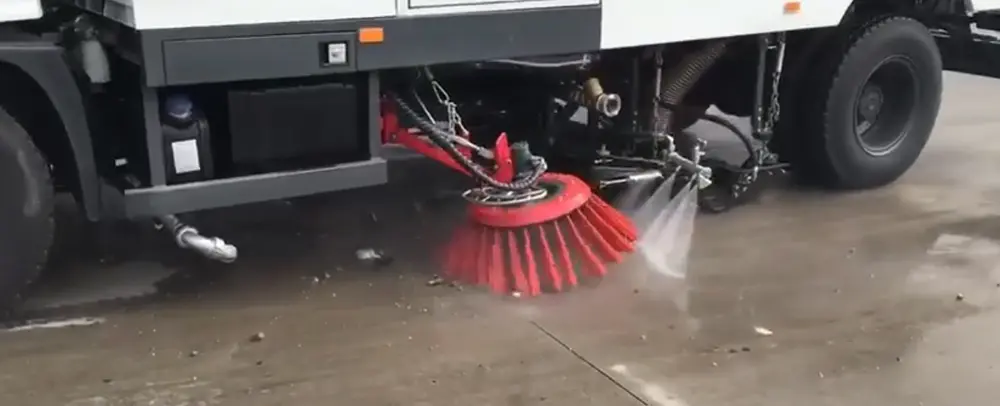

2. Brushes: Rotating brushes are a common cleaning component. These brushes are usually made of durable materials such as stiff nylon or wire bristles.
3. Water-Spraying System: Many road-cleaning trucks have a high-pressure water-spraying system. It consists of a water pump, which is typically driven by the truck's engine through a power take-off (PTO) system.
4. Waste Storage: The truck has a waste storage compartment to hold the debris collected by the cleaning mechanisms.
5. Water Tanks: In the case of trucks with a water-spraying system, there is a water tank. The tank's size varies depending on the truck's design and intended use.
6. The cab is designed with the driver's comfort and functionality in mind. It features an ergonomic seat to reduce fatigue during long-working hours.
7. Road-cleaning trucks are equipped with a range of lights and safety equipment. There are bright headlights and taillights for visibility during nighttime driving and transportation.
1. Type and Quality of Brushes: Look for brushes made of durable materials such as high-quality nylon or wire bristles.
2. Brush Coverage and Adjustability: Consider the width of the area the brushes can cover. A wider brush coverage can clean more road surface in a single pass, increasing efficiency.
3. Brush Rotation Speed and Power: The rotation speed of the brushes affects the cleaning power. A variable-speed brush system is preferable as it can be adjusted according to the amount and type of debris.
4. Water Pressure and Flow Rate: Determine the required water pressure and flow rate for effective cleaning. Higher pressure is needed to remove stubborn dirt and grime.
5. Nozzle Design and Coverage: The nozzles should be designed to provide an even spray pattern over the desired cleaning area.
6. Water Tank Capacity: Calculate the amount of water needed for a typical cleaning route. A larger water tank (ranging from 500 to 2000 gallons or more) reduces the frequency of refilling, but it also adds to the truck's weight.
7. Storage Capacity: Estimate the volume of debris you expect to collect during a cleaning session. The waste storage compartment should have enough capacity to hold this debris without overfilling.
8. Ease of Emptying: The waste storage compartment should have a convenient and efficient emptying mechanism.
9. Chassis Strength: The chassis must be strong enough to support the weight of the cleaning equipment, water tanks (if any), waste storage, and the truck body.
10. Suspension and Tires: A good suspension system absorbs shocks and vibrations, providing a smooth ride and protecting the cleaning equipment from damage.
The truck is equipped with a combination of cleaning tools. Rotating brushes, often made of durable nylon or wire bristles, are powered by reliable motors. They can sweep a wide range of debris, from leaves and paper to small stones, off the road surface.
There is a waste storage compartment, typically made of corrosion-resistant materials like stainless steel or high-density polyethylene. It has a sufficient capacity to hold the debris collected by the cleaning mechanisms.
The chassis is a heavy-duty structure, made of high-strength steel. It supports the weight of the cleaning equipment, water tanks (if any), waste storage, and other components.
The cab is designed with the driver's comfort and functionality in mind. It has an ergonomic seat to reduce fatigue during long working hours. The controls for driving the truck and operating the cleaning mechanisms are laid out in an intuitive manner.
The truck is equipped with safety and visibility features. It has bright headlights and taillights for clear visibility during nighttime driving. Reflective markings on the sides and rear of the truck enhance its visibility in low-light conditions or when other vehicles' headlights shine on it.
