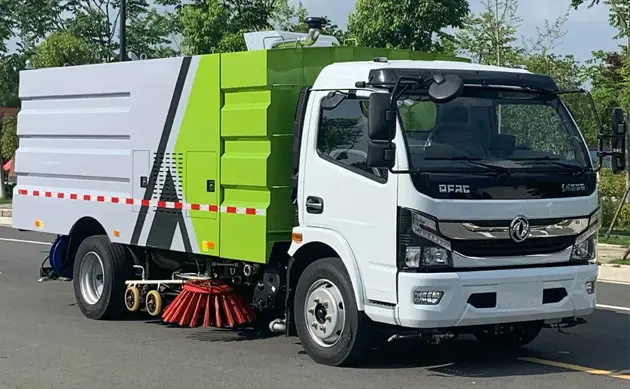

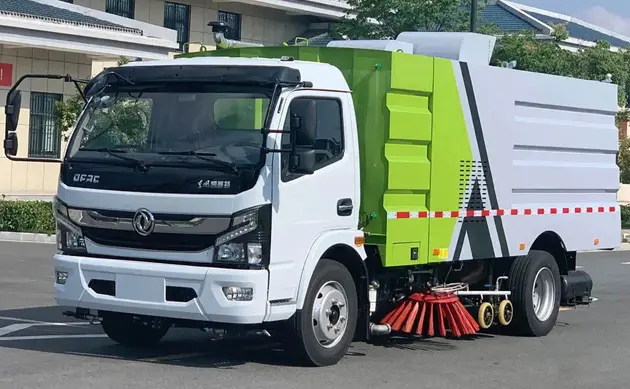

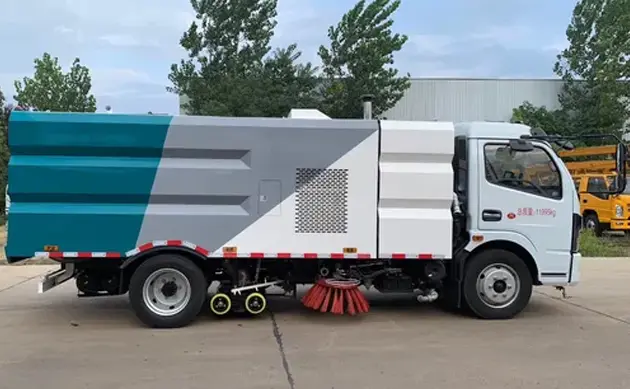

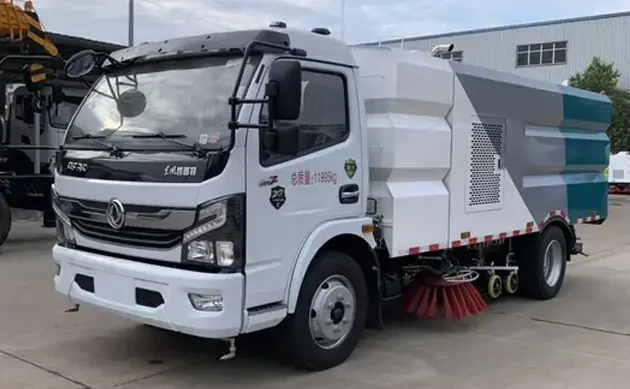

A Road Sweeper Truck is a crucial asset for road maintenance. Built on a solid chassis crafted from heavy-duty steel, it guarantees stability and longevity. The key component is its advanced sweeping mechanism. Comprising of large, high-quality rotating brushes, it efficiently clears away various types of debris such as dirt, litter, leaves, and small pebbles from the road surface. Complemented by a powerful suction unit, the truck can quickly and thoroughly collect the swept-up materials and deposit them into a sizeable waste container. The operator's cab is thoughtfully designed, providing a comfortable environment with ergonomic seating and a well-organized instrument panel. Additionally, it is outfitted with essential safety features including bright headlights, taillights, and warning beacons.
| Truck model | CLW5110TXSD5 | |
| Chassis model | EQ1110SJ8BDC | |
| Wheelbase | 3800mm | |
| Front/rear suspension | 1130/2070 mm | |
| Engine model | Chassis engine | CY4102-E3C |
| Spare engine | JE493-G3 | |
| Engine rate | Chassis engine | 88kw, 3856cc, 120hp |
| Spare engine | 57 kW | |
| Max upgrade angle | 30% | |
| Emission standard | Euro 3 | |
| Accelerating outside noise | ≤84dB(A) | |
| Max speed | 103 km/h | |
| Approach angle | 21° | |
| Departure angle | 13° | |
| Weight specifications | Kurb weight | 7045 kg |
| Whole weight | 11450kg | |
| Dimension specifications | Whole dimension | 7000×2200×2750mm |
| Minimum height above ground | 250 mm | |
| High pressure clean | Clean speed | 3~20 Km/h |
| Clean width | 3 m | |
| Water pressure | 12 MPa | |
| Water pump flow | 115 L/min | |
| Clean and suction performance | Cleaning efficiency | ≥95% |
| Maximum suction particle size | 110 mm | |
| Clean and suction width | 3 m | |
| Max clean capacity | 60000 m2/h | |
| Disc brush size | ≥400 mm | |
| Clean and suction speed | 3-20 km/h | |
| Water Tank | Water tank volume | 5 m³ |
| Dust tank | Dust tank volume | 5 m³ |
| Dump bin tilting angle | ≥46° | |
| Discharge door opening angle | ≥85° | |
| Hydraulic system | Model | Open, electrical control |
| Major parts | Gear pump, hydraulic motor, hydraulic cylinder, solenoid valve | |
| System pressure | 16 MPa | |
| Oil tank | 60 L | |
| Oil temperature | 60 ˚C | |
| Electrical system | Model | DC24 V |
| Voltage | 24 V | |
| Battery | 24 V | |
| Water spray system | Major parts | Electric diaphragm pumps, water filters, nozzles, etc. |
| Sweeping devise | Model | Center two swabs, driven by a hydraulic motor, and the front right can be controlled independently, with a evasive reply function. |
| Brush diameter | 850 mm | |
| Brush angle | Tilt forward: 4-6 degrees Tilt: 4-7 degrees | |

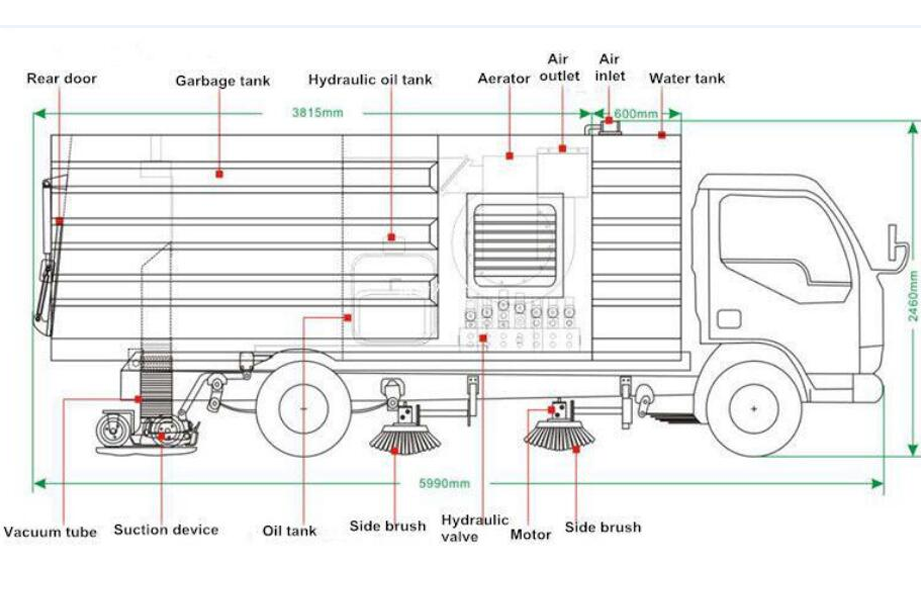

1. The chassis of a road sweeper truck is a heavy-duty structure, usually made of high-strength steel plates. It serves as the foundation for the entire vehicle. Reinforced axles are crucial to evenly distribute the weight of the sweeping equipment, waste bin, and other components.
2. Rotating Brushes: These are the main tools for sweeping. They are typically made of durable materials such as stiff nylon or wire bristles. The brushes are powered by an electric or hydraulic motor and can rotate at different speeds.
3. Suction Device: Connected to the brushes, the suction device creates a vacuum to draw in the materials swept up by the brushes. It consists of a powerful blower or vacuum pump, which is usually driven by the truck's engine through a power take-off (PTO) system.
4. The waste bin is where the collected debris is stored. It is usually made of corrosion-resistant materials such as stainless steel or high-density polyethylene.
5. The cab is designed with the driver's comfort and functionality in mind. It has an ergonomic seat to reduce fatigue during long working hours. The controls for driving the truck and operating the sweeping mechanism are laid out in an intuitive manner.
6. Road sweeper trucks are equipped with a range of lights and safety equipment. There are bright headlights and taillights for visibility during nighttime driving and transportation.
1. Brush Material: Look for brushes made of durable materials like high-grade nylon or wire bristles. The material should be able to withstand the abrasion from the road surface and different types of debris.
2. Brush Width and Adjustability: The width of the brushes determines the area the truck can cover in a single pass. A wider brush coverage is more efficient. Also, check if the brushes can be adjusted in terms of height and angle.
3. Brush Rotation Speed and Power: The rotation speed affects the cleaning efficiency. A variable-speed brush system is preferable as it can be adjusted according to the amount and nature of debris.
4. Suction Capacity: Consider the suction power needed to pick up various debris. A stronger suction is required for larger and heavier materials.
5. Hose Length and Flexibility: The suction hose should be long enough to reach all areas around the truck.
6. Bin Capacity: Estimate the volume of debris you'll encounter during a typical cleaning operation. The waste bin should have enough capacity to hold this debris without frequent emptying.
7. Emptying System: The method of emptying the waste bin should be convenient and efficient. Some trucks have a hydraulic tipping system that allows for easy discharge of the waste at a disposal site.
8. Chassis Strength: The chassis must be strong enough to support the weight of the sweeping equipment, waste bin, and other components.

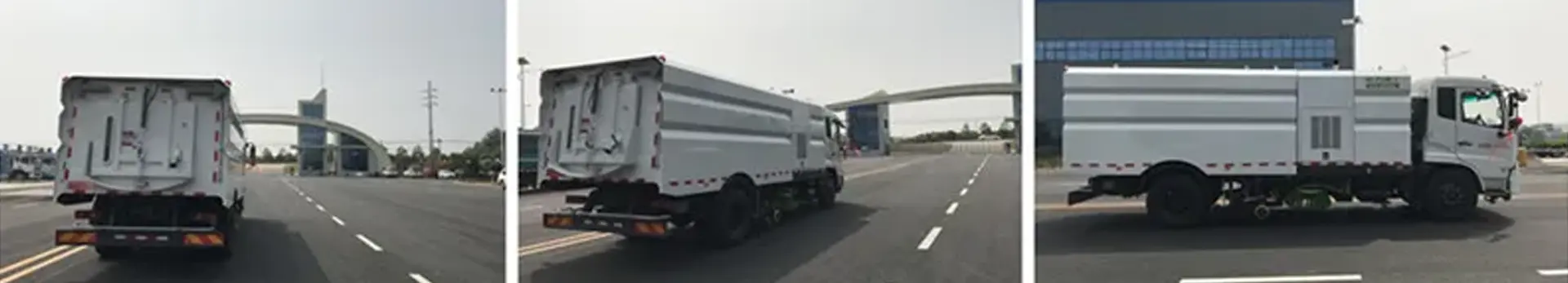

The road sweeper truck features a high-performing sweeping mechanism. The rotating brushes, often made of durable materials like nylon or wire bristles, are the heart of the system. These brushes are powered by reliable motors and can rotate at variable speeds.
A well-designed waste bin is a crucial feature. Made of corrosion-resistant materials such as stainless steel or high-density polyethylene, it has a sufficient capacity to store the debris collected by the sweeping system.
The chassis is a heavy-duty structure, typically made of high-strength steel. It provides a solid base for the truck, supporting the weight of the sweeping equipment, waste bin, and other components.
The cab of the road sweeper truck is designed with the driver's comfort and functionality in mind. It features an ergonomic seat to reduce operator fatigue during long working hours. The controls for driving the truck and operating the sweeping system are laid out in an intuitive manner.
The truck is equipped with a range of safety and visibility features. It has bright headlights and taillights for clear visibility during nighttime driving. Reflective markings on the sides and rear of the truck enhance its visibility in low-light conditions or when other vehicles' headlights shine on it.
