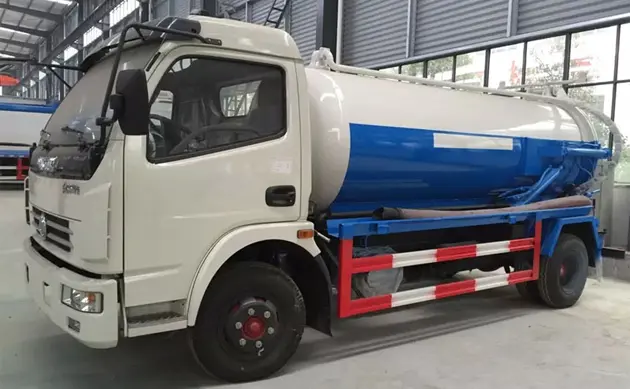

A sewage suction truck is a specialized vehicle designed for efficient collection and transportation of sewage and other liquid waste. It features a large-capacity tank, usually made of corrosion-resistant materials, which is mounted on a sturdy chassis constructed from heavy-duty steel.
The truck is equipped with a powerful vacuum pump that can generate significant suction force, allowing it to draw in sewage from various sources such as septic tanks, cesspools, and industrial drains. It has a flexible suction hose and a range of valves and fittings to control the flow of the waste.
The cab is designed for operator comfort, with ergonomic seats and clear instrumentation. Additionally, safety features like bright lights and reflective markings are incorporated to ensure visibility during operation and transportation.

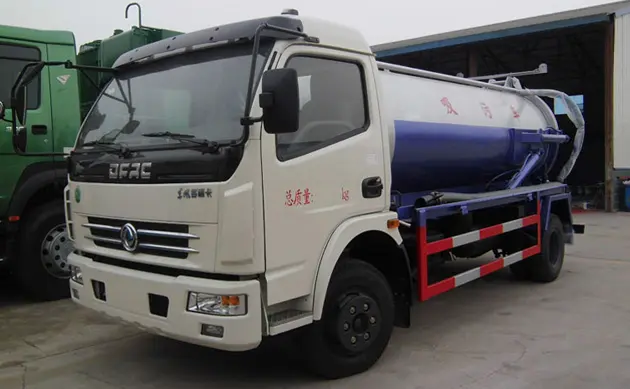

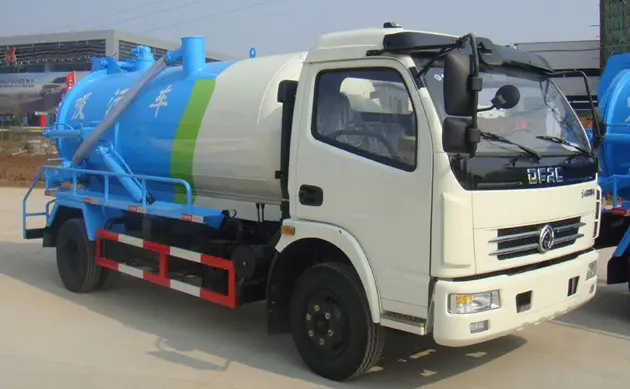

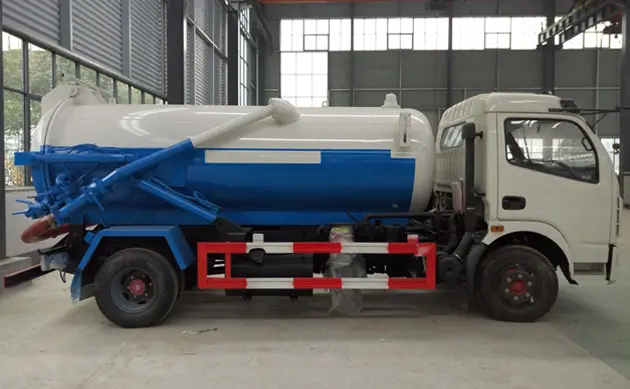

| The specification of 4X2 DongFeng 5m3 Sewage Truck | |
| The Parameters of 5 m3 Sewage Suction Truck | |
| Overview | |
| Name | Sewage Suction Truck |
| Dimension(LxWxH) | 5990X1960X2380(mm) |
| Total Mass | 8050Kg |
| Rated Payload | 5000Kg |
| Curb Weight | 3050Kg |
| Passenger | 3 |
| Approach/Departure Angle | 19/15 |
| The Parameters of Chassis | |
| Manufacture/Model | Dongfeng/EQ1060TJ20D3 |
| Driving Type | 4*2 left/right hand drive |
| Wheel Base | 3300 mm |
| Gearbox | Six speed lever with five speed forward and one reverse, manual |
| Front/Rear Track | 1506/1466(mm) |
| Tyre | 7.50-16 |
| The Number of Tyre | 6+1(spare tyre) |
| Front/ Rear Suspension | 1032/1658(mm) |
| Leaf Spring Number | 8/9+5, 6/8+4 |
| Engine | |
| Manufacturer/Model | Chaoyang/CY4102-C3F |
| Rated Power | 95hp/70kw |
| Fuel Type | Diesel oil |
| Displacement/Capacity | 3856ml |
| Emission Standard | Euro3 |
| Cylinder | Straight/4 |
| Max. torque | 560N.m |
| Velocity | 3200rpm |
| The Parameters of Equipment | |
| Tank Capacity | 5 m3 |
| Vacuum Pump Rotation Speed | 800r/m-1400r/m |
| Max. Suction Lift | >6m |
| Vacuum | >500mmHg |
| Rotation Direction | Clockwise |
| Time for full suction | <5min |

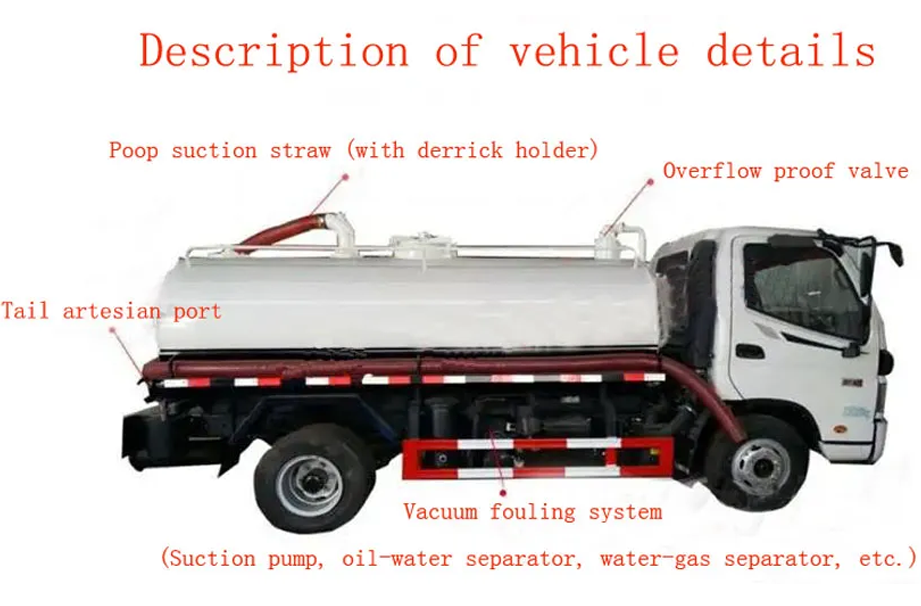

| Common Accessories | Vacuum pump, ball valve, oil cylinder for rear cap, oil cylinder for dumping, pressure meter, window for showing liquid level,lock system for rear cap, four-way valve, moisture separator,sprinkler (optional), alarm for full suction (optional),etc. |
1. The chassis of a sewage suction truck is a heavy-duty, robust structure. Typically made of thick, high-strength steel plates, it forms the base that supports the entire vehicle.

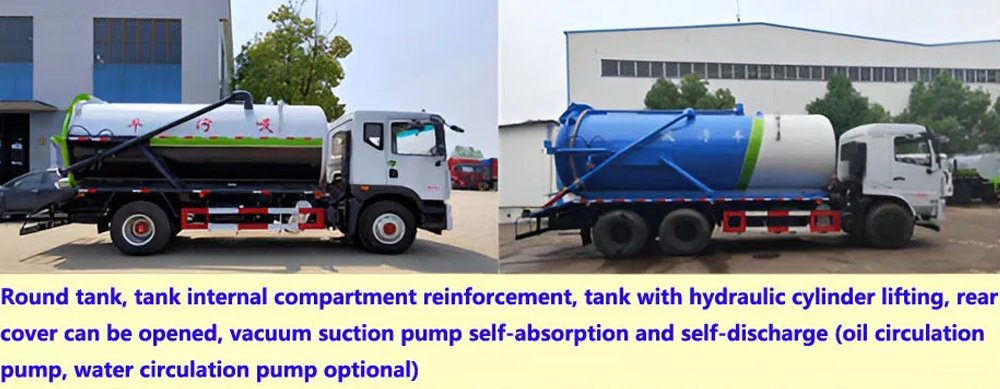

2. The sewage tank is the core component. It is usually made of corrosion-resistant materials like stainless steel or high-density polyethylene. The tank's capacity varies depending on the truck's intended use, ranging from a few cubic meters to larger volumes for industrial or municipal applications.
3. A powerful vacuum pump is essential for the truck's operation. It can generate a significant suction force, enabling the truck to draw in sewage from different sources such as septic tanks, sewer manholes, or industrial waste pits.
4. The truck is equipped with a flexible suction hose. This hose is made of durable materials that can withstand the corrosive nature of sewage and the pressure changes during suction.
5. The cab is designed with the operator's comfort and functionality in mind. It features an ergonomic seat to reduce fatigue during long working hours. The controls for driving the truck and operating the vacuum pump system are laid out in an intuitive manner.
6. Sewage suction trucks are outfitted with a range of lights and safety equipment. Bright headlights and taillights ensure visibility during nighttime driving and transportation.
1. Tank Capacity: The capacity of the sewage tank is a crucial factor. It depends on the volume of sewage you need to handle regularly.
2. Tank Material: The material of the tank affects its durability and resistance to corrosion. Stainless-steel tanks are highly durable and can withstand the corrosive nature of sewage.
3. Suction Power: The vacuum pump's suction power determines how effectively the truck can draw in sewage.
4. Flow Rate: The flow rate of the vacuum pump is also important. It indicates how quickly the sewage can be transferred into the tank.
5. Hose Durability: The suction hose should be durable and able to withstand the corrosive and abrasive nature of sewage.
6. Fitting Compatibility: The fittings at the end of the hose need to be compatible with a variety of inlet sources.
7. Chassis Strength: The chassis must be strong enough to support the weight of the full sewage tank and other equipment.
8. Vehicle Maneuverability: The size and turning radius of the truck affect its ability to access different collection sites.
9. Operator's Comfort: The cab should have an ergonomic seat to reduce operator fatigue during long workdays.
10. Visibility: Good visibility from the cab is crucial. The truck should have large windows and well-placed mirrors to provide a clear view of the rear and sides of the truck.
