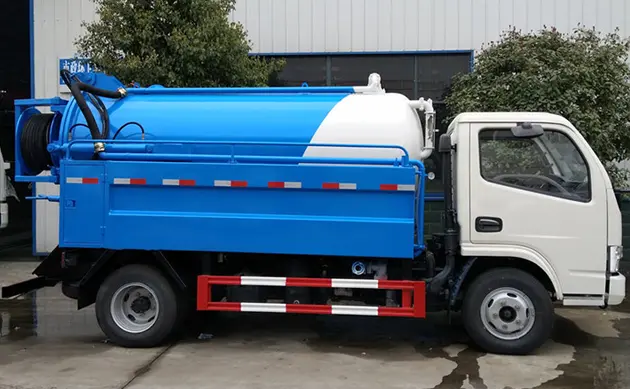

A sewer cleaning truck is a specialized vehicle essential for maintaining the health and functionality of sewer systems. It is built on a robust chassis, usually made of heavy-duty steel, ensuring stability and durability. The truck is equipped with a powerful high-pressure water pump system. This system can generate intense water jets with high pressure, which are used to break up and flush out blockages and debris in sewers.
It also has a large-capacity water tank to store the necessary water for the cleaning process. The hose reel, with a long and flexible hose, allows the water jet to reach deep into the sewer lines. The cab is designed for operator comfort, featuring ergonomic seats and clear instrument panels. Safety features like bright lights and warning signals are incorporated. This vehicle plays a crucial role in keeping sewer systems clean and flowing properly, preventing backups and potential environmental and health hazards.
| The specification of 4X2 Dongfeng 5CBM Sewer Cleaning Truck | ||
| CHASSIS | ||
| Cabin | LHD,3 passengers with air-conditioner | |
| Overall Dimension | 7210x2240x2600mm | |
| Gross Vehicle Weight | 8275kg | |
| Curb Weight | 5200kg | |
| Loading Weight | 2880Kg | |
| Wheel Base | 3800mm | |
| Approach/Departure Angle | 24/10 degree | |
| Engine | CY4102; watering cooling, four stroke, 4 cylinder in line; Euro III | |
| Engine horsepower | 124HP | |
| Displacement | 3,856 L(Diesel) | |
| Max Driving Speed | 99km/h | |
| Fuel Tank | 120L | |
| Tire | 7.50-16 (6 pieces + 1 spare) | |
| TANK BODY | ||
| Water Tank | Capacity | 2.74CBM |
| Dimension | 2100*1400mm(Length*Diameter) | |
| Material | Q235 high tension steel | |
| Thickness | 4mm | |

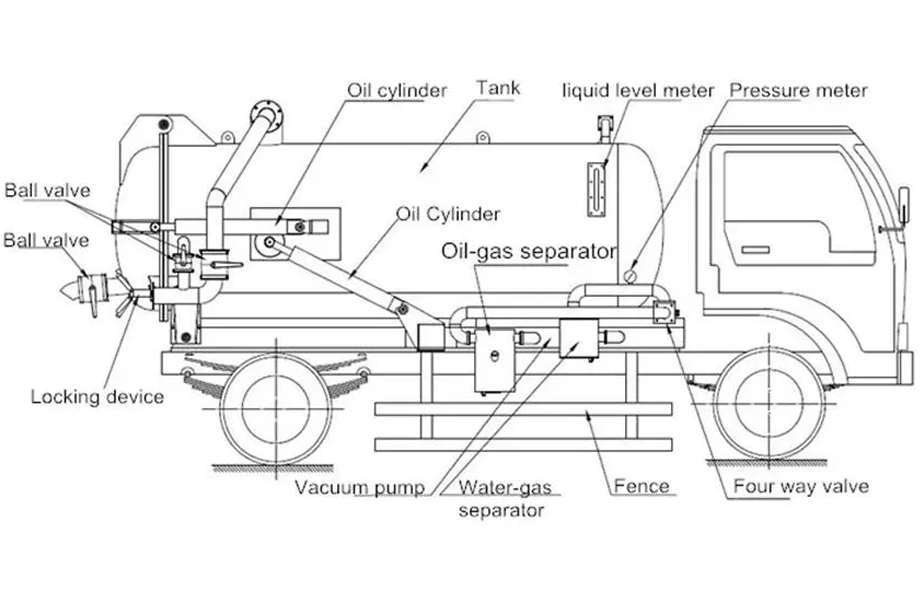

| Vacuum Tank | Capacity | 2.94CBM |
| Dimension | 2000*1400mm(Length*Diameter) | |
| Material | Q235 high tension steel | |
| Thickness | 6mm | |
| PUMP | ||
| Vacuum Suction Pump | Model | SK-6 |
| Vertical Suction Range | 9~10M | |
| Flow Rate | 1.5m³/min | |
| Rubber tube | 7M | |
| Adequate Vacuum, Strong suction, Stable Working, Easy Operation and Maintenance | ||
| Plunger High Pressure Pump | Model | HTT(Italian brand) |
| Flow Rate | 125L/min | |
| Pressure | 16Mbar | |
| Laminated steel tube | 60M | |
| Cleaning Applicator | 10nos with different pushing forces for pipelines cleaning and dredging | |
1. The chassis of a sewer cleaning truck is a heavy-duty structure, typically made of thick, high-strength steel plates. It serves as the base that supports the entire vehicle.
2. The water tank is a central component of the sewer cleaning truck. It is usually made of corrosion-resistant materials such as stainless steel or fiberglass-reinforced plastic.
3. The high-pressure pump system is the key to the truck's cleaning function. It consists of a powerful pump, usually a centrifugal or piston-type pump. The pump is driven by the truck's engine through a power take-off (PTO) system or an independent engine.
4. The hose reel is an important part of the truck. It is usually mounted on the truck's body and is designed to store and dispense a long, flexible hose.
5. The cab is designed with the operator's comfort and functionality in mind. It has an ergonomic seat to reduce fatigue during long-working hours. The controls for driving the truck and operating the high-pressure pump system are laid out in an intuitive manner.
6. Sewer cleaning trucks are equipped with a range of lights and safety equipment. Bright headlights and taillights ensure visibility during nighttime driving and transportation.
1. Pressure Requirements: Determine the level of pressure needed to effectively clean the sewers you'll be working on. Different sewer systems with various degrees of blockages and pipe diameters may require different pressure levels.
2. Flow Rate: Consider the flow rate of the pump as well. A higher flow rate, measured in gallons per minute (GPM), can help flush out debris more quickly.
3. Job Requirements: Estimate the amount of water you'll need for a typical cleaning job. If you're dealing with a large-scale sewer system that requires extensive flushing, you'll need a truck with a larger water tank.
4. Reach: The length of the hose is crucial. Ensure it's long enough to reach the farthest points of the sewer systems you'll be servicing.
5. Durability: The hose should be made of high-quality, abrasion-resistant materials. It needs to withstand the high-pressure water flow and the rough interior of sewer pipes.
6. Chassis Strength: The chassis must be strong enough to support the weight of the water tank (when full), the pump system, and other components.
7. Suspension and Tires: A good suspension system absorbs shocks and vibrations, which is important when the truck is traveling on uneven roads to reach sewer access points.
8. Operator's Comfort: The cab should have an ergonomic seat to reduce operator fatigue during long workdays. Adequate legroom, headroom, and a comfortable driving position are essential.

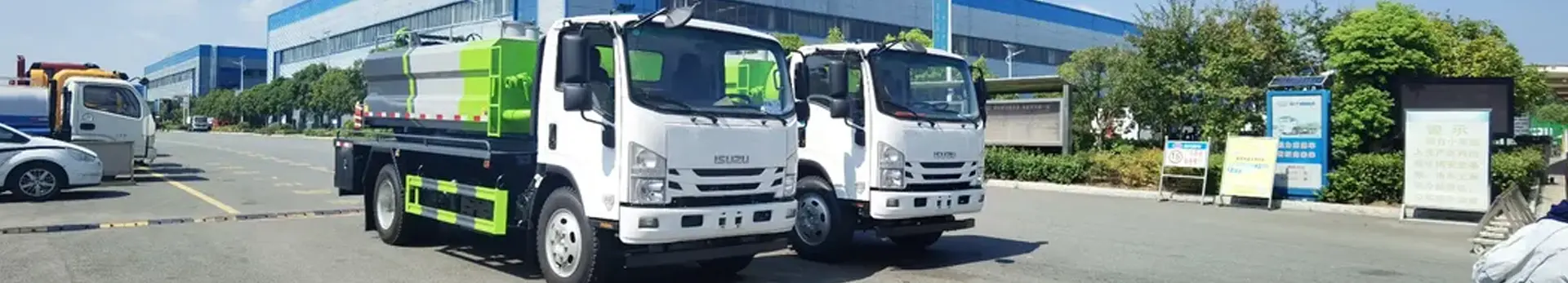

The high-pressure pump system is a core feature. It consists of a robust pump, often a centrifugal or piston-type, capable of generating extremely high water pressures. This pump is driven by the truck's engine through a power take-off (PTO) or an independent engine.
A significant water tank is essential. Made of corrosion-resistant materials like stainless steel or fiberglass-reinforced plastic, it stores the water needed for the cleaning process.
The hose reel is mounted on the truck body and stores a long, flexible hose. The hose, made of tough, abrasion-resistant materials, can endure the high-pressure water flow and the rough conditions within sewer pipes.
The chassis is a heavy-duty structure, usually made of high-strength steel. It supports the weight of the water tank, pump system, and other components. Reinforced axles ensure even load distribution.
The cab is designed with the operator's comfort and functionality in mind. It has an ergonomic seat to reduce fatigue during long working hours.
The truck is equipped with safety and visibility features. It has bright headlights and taillights for clear visibility during nighttime driving.
