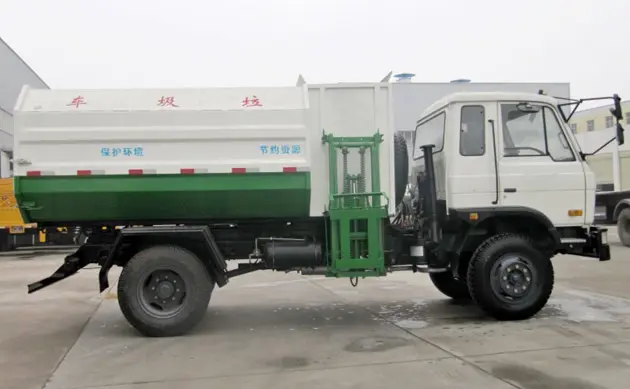

A Side Loader Garbage Truck is a highly efficient waste collection vehicle. It is built on a strong chassis, usually made of heavy-duty steel, ensuring stability and durability. The side loading mechanism is its key feature. This system consists of an automated arm that can extend and grab waste containers from the side of the street.
The truck is equipped with a spacious cargo compartment, often made of corrosion-resistant materials, to hold the collected waste. The cab is designed for driver comfort, with ergonomic seats and a clear instrument panel. It also has safety features like bright lights and warning signals. This type of truck is especially suitable for urban areas where waste containers are placed along the curb. It allows for quick and convenient collection, minimizing the need for manual handling and enhancing the overall efficiency of waste management operations.
| The specification of 4X2 Dongfeng 5CBM Side Loader Garbage Truck | ||
| Overall Dimension | 5895 x2045x2210mm | |
| Curb Weight | 3550kg | |
| Wheel Base | 3300 mm | |
| Cabin | 3 Passengers Allowed, with AirConditioner, Radio | |
| Engine | Yuchai EngineYC4F115-30 | |
| Engine horsepower | 115HP, EUROIII | |
| Displacement | 2.659L | |
| Max Driving Speed | 90 km/h | |
| Gear Box | 6 Forward Gear, 1 Reverse Gear | |
| Tire | 7.00R16(6 pieces with one spare) | |
| Garbage Bin | Capacity | 5 CBM |
| Material | 4mm Carbon Steel for Garbage Bin Body | |
| Design | Whole unit with Leakage Proof Design | |
| Ways of Loading | side Loading withbucket Lifting System | |
| Control System | One control handle behind the cabin | |
| Main structure | 1. Equipped with air-tight dustbin, hydraulic system and operating system.garbage bucket lifting and overturning. 2. Sealed and self-loading and self-discharging and hydraulic operating; 3. Install the pusher and scraper device in the sealed garbage box | |
1. The chassis of a Side Loader Garbage Truck is a heavy-duty, rigid structure. Constructed from thick, high-strength steel plates, it serves as the foundation that supports the entire vehicle. Reinforced axles are crucial to evenly distribute the weight, especially when the cargo compartment is filled with waste.
2. The side loading mechanism is the core and unique feature of this truck. It consists of an automated arm, usually made of strong steel or a combination of metals. The arm is powered by a hydraulic system.
3. The cargo compartment is where the collected waste is stored. It is typically made of corrosion-resistant materials such as stainless steel or high-density polyethylene. The compartment has a certain capacity, which can vary depending on the size of the truck.
4. The hydraulic system powers the side loading mechanism. It includes a hydraulic pump, usually driven by the truck's engine through a power take-off (PTO) system. The pump pressurizes the hydraulic fluid, which is then directed to the hydraulic cylinders of the side loading arm.
5. The cab is designed with the driver's comfort and functionality in mind. It features an ergonomic seat to reduce fatigue during long working hours. The controls for driving the truck and operating the side loading mechanism are laid out in an intuitive manner.
6. Side Loader Garbage Trucks are outfitted with a range of lights and safety equipment. Bright headlights and taillights ensure visibility during nighttime driving and transportation.
1. Lifting Capacity: Determine the maximum weight of the waste containers that the side-loading arm can handle.
2. Reach and Maneuverability: Consider the reach of the loading arm. It should be able to access waste containers placed at different distances from the truck.
3. Capacity: Calculate the volume of waste you need to collect regularly. The cargo compartment's capacity should be sufficient to reduce the number of trips to the disposal site.
4. Material and Durability: The compartment should be made of durable, corrosion-resistant materials like stainless steel or high-density polyethylene.
5. Power and Speed: The hydraulic system that powers the side-loading arm needs to be powerful enough to operate the arm smoothly and quickly.
6. Reliability and Maintenance: Opt for a hydraulic system known for its reliability. Fewer moving parts and easy-to-maintain components reduce the risk of breakdowns.
7. Chassis Strength: The chassis must be strong enough to support the weight of the cargo compartment when full and the forces exerted by the side-loading arm.
8. Suspension and Tires: A good suspension system absorbs shocks and vibrations, providing a comfortable ride and protecting the truck's components.
9. Operator's Comfort: The cab should have an ergonomic seat to reduce operator fatigue during long workdays.
10. Visibility: Good visibility from the cab is crucial. The truck should have large windows and well-placed mirrors to provide a clear view of the side-loading arm's operation, the rear, and the sides of the truck.
The side loading mechanism is the hallmark of this truck. It features an automated arm, typically made of strong steel. This arm is powered by a hydraulic system. The hydraulic cylinders enable the arm to extend, retract, lift, and lower with precision.
The cargo compartment is designed to hold a significant amount of waste. It is usually made of corrosion-resistant materials such as stainless steel or high-density polyethylene. This ensures durability and protection against the corrosive nature of waste.
The chassis of a side loader garbage truck is heavy-duty and constructed from high-strength steel. It provides a solid base to support the weight of the cargo compartment, the side loading mechanism, and the waste.
The hydraulic system is a crucial component that powers the side loading arm. It consists of a hydraulic pump, often driven by the truck's engine through a power take-off (PTO) system. The pump pressurizes the hydraulic fluid, which is then directed to the hydraulic cylinders of the side loading arm.
The cab is designed with the driver's comfort and ease of operation in mind. It has an ergonomic seat to reduce fatigue during long working hours. The controls for driving the truck and operating the side loading mechanism are laid out in an intuitive manner.
The truck is equipped with safety and visibility features. It has bright headlights and taillights for clear visibility during nighttime driving. Reflective markings on the sides and rear of the truck enhance its visibility in low-light conditions or when other vehicles' headlights shine on it.
