A water tank truck features a large-capacity tank, typically made of corrosion-resistant materials such as stainless steel or high-density polyethylene. The tank is mounted on a sturdy chassis, often constructed from heavy-duty steel, which can withstand the weight of the filled tank and ensure stability during transportation.
Equipped with a reliable pumping system, it can load and unload water efficiently. The pump may have adjustable flow rates to meet different water transfer requirements. The truck also has hoses and valves for controlled dispensing of water.
The cab is designed for driver comfort and convenience, with ergonomic seats and clear instrument panels. Additionally, safety features like bright headlights, taillights, and reflectors are incorporated to enhance visibility on the road, making it suitable for a wide range of applications, from supplying water to construction sites to delivering clean water in disaster-stricken areas.
| Specification of 4x2 Dongfeng 5CBM Water Tanker Truck | ||
| General Parameter | Drive Model | 4x2 LHD |
| Curb Weight | 3150(kg) | |
| Gross Weight | 7300(kg) | |
| Approach/Departure angle | 16/13(°C) | |
| Overall Dimensions | 5995×1980×2380 (mm) | |
| Wheel Base | 3300 (mm) | |
| Overhang (front/rear) | 1032/1658(mm) | |
| Wheel Track (front/rear) | 1404/1458 (mm) | |
| Leaf Spring | 8/9+5 | |
| Axle Load(kg)(front/rear) | 1980/3095 (mm) | |
| Tire Quantity | 6 + 1 spare tire | |
| Tire Type | 7.00-16 | |
| Cab | Passenger | 2 person |
| Max. Driving Speed | 95km/h | |
| Engine Parameter | Engine Model | CY4102 |
| Fuel | Diesel | |
| MAX Power | 95 HP | |
| Emission standard | Euro III | |
| Cylinder Number | 4 | |
| Rated Speed | 3200RPM | |
| MAX Output Power | 70KW | |
| Displacement | 3.856L | |
| Upper | ||
| Superstructure | Tank Dimensions | 3120×1200×700mm |
| Tanker body material | Carbon Steel | |
| Water Tank Thickness | 5 MM | |
| Shape | Ellispe | |
| Storage tank compartment | 2 | |
| Color and Logo | Optional | |
| Spraying Width | 14 M | |
| water cannon range | ≥28m | |
| Suction height | ≥6m | |
| Hose | High quality PVC hose, anti-aging | |
| Water Pump | Type: Imported Italien Brand | |
| Pump Capacity1000 L/minute | ||
| Pipeline Diameter 19mm | ||
| Pipeline Length 60m | ||
| Flush Pressure250-450KPa | ||
| Water Injector 10pcs | ||
| Time of Drawing Water≥5minutes | ||
| Water Pump Flow40 (m³/h) | ||
| Standard Configuration | Chassis, sub frame, carbon steel water tank, manhole, water pump, front/side/rear spray nozzle, rear working platform, water cannon, fire valve, water valve, filter gauze, water hose, climbing ladder. | |
| Selective Configuration | Stainless steel/aluminum alloy water tank, insulation layer for water tank, stainless steel water pump, fire pump, fire gun, pesticide plate, cabin gas control operated, Honda pumps, lights, crane, hanging basket, rear spraying device, barrel pesticide spraying device, gasoline pesticide machine, diesel pesticide machine, LED arrow lights. | |

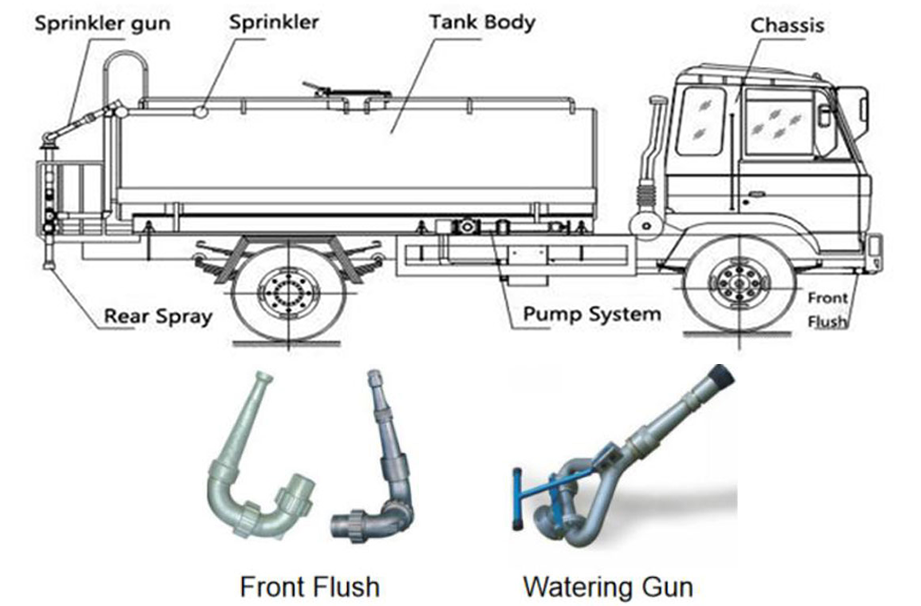

1. The chassis of a water tank truck is a heavy-duty, robust structure, usually made of thick, high-strength steel plates. It serves as the foundation, bearing the substantial weight of the water tank when filled, along with the truck's other components.
2. The water tank is the core component. It is typically made of corrosion-resistant materials like stainless steel or high-density polyethylene. Stainless steel tanks offer durability and can withstand harsh environmental conditions, while polyethylene tanks are lighter and more resistant to certain chemicals.
3. A reliable pumping system is essential for loading and unloading water. The pump can be powered by the truck's engine or have a separate power source. It is capable of generating sufficient pressure to transfer water in and out of the tank.
4. Water tank trucks are equipped with hoses and valves for efficient water dispensing. The hoses are usually made of flexible, durable materials that can withstand the pressure of the water flow.
5. The cab is designed with the driver's comfort and functionality in mind. It features ergonomic seats to reduce driver fatigue during long trips.
6. These trucks are outfitted with a range of lights and safety equipment. Bright headlights and taillights ensure good visibility during nighttime driving. Reflectors are placed on the sides and rear of the truck to make it more visible in low-light conditions or when other vehicles' headlights shine on it.
1. Tank Capacity: Determine the volume of water you need to transport regularly. For small-scale operations such as watering gardens or supplying water to small construction sites, a tank with a capacity of 2,000-5,000 liters might be sufficient.
2. Tank Material: The material of the tank affects its durability and the quality of the water it holds. Stainless-steel tanks are highly durable, resistant to corrosion, and can maintain water quality over a long period.
3. Pump Power and Flow Rate: The pumping system's power and flow rate are crucial. A powerful pump with a high flow rate (measured in liters per minute or gallons per minute) is essential for quickly filling and emptying the tank.
4. Pump Durability and Maintenance: Look for a pump that is durable and easy to maintain. A well-built pump with fewer moving parts and a reputation for reliability can reduce downtime and repair costs.
5. Chassis Strength: The chassis should be strong enough to support the weight of the full water tank and any additional equipment. A heavy-duty chassis made of high-strength steel is preferable.
6. Vehicle Maneuverability: The size and turning radius of the truck affect its ability to navigate through different terrains and access narrow spaces.
7. Hose Durability and Length: The hoses should be durable, able to withstand the pressure of the water flow, and resistant to abrasion.
8. Valve Functionality: The valves should provide precise control over the water flow. Look for valves that are easy to operate, leak-proof, and can handle the pressure of the system.
Water tank trucks are equipped with a sizable water tank. The tank's capacity can vary widely, ranging from a few thousand liters to tens of thousands of liters. It is constructed from durable and corrosion-resistant materials such as stainless steel or high-density polyethylene.
A reliable pumping system is a key feature. It enables the loading and unloading of water. The pump can be powered by the truck's engine or have a separate power source.
These trucks come with hoses and valves for effective water dispensing. The hoses are made of flexible yet durable materials that can withstand the pressure of water flow.
The chassis of a water tank truck is heavy-duty and made of high-strength steel. It is designed to support the weight of the water tank when full and other components of the truck.
The cab is designed with the driver's comfort in mind. It features an ergonomic seat to reduce fatigue during long trips. The instrument panel is clear and easy to read, providing essential information such as fuel level, water tank level, and vehicle speed.
Water tank trucks are equipped with safety and visibility features. Bright headlights and taillights ensure visibility during nighttime driving. Reflectors are placed on the sides and rear of the truck to make it more visible in low-light conditions.
